LINKS2 by Linkswell – 10-Inch RV Central Control Center & 12-Channel Switching Module

Upgrade your RV, camper van, or overland adventure rig with the 10-Inch RV Central Control Center & 12 Channel Switching Module—a professional-grade, all-in-one power management and monitoring system designed by Links2, a sister company of LinksWell, Inc. Engineered for total electrical control, real-time diagnostics, and seamless integration, this system delivers the reliability and sophistication needed for off-grid travel and modern RV builds.

Featuring a high-resolution 10.1” touchscreen and the advanced Node 12 power distribution module, this system centralizes lighting, appliances, tanks, temperatures, charging inputs, and system data into one powerful interface.

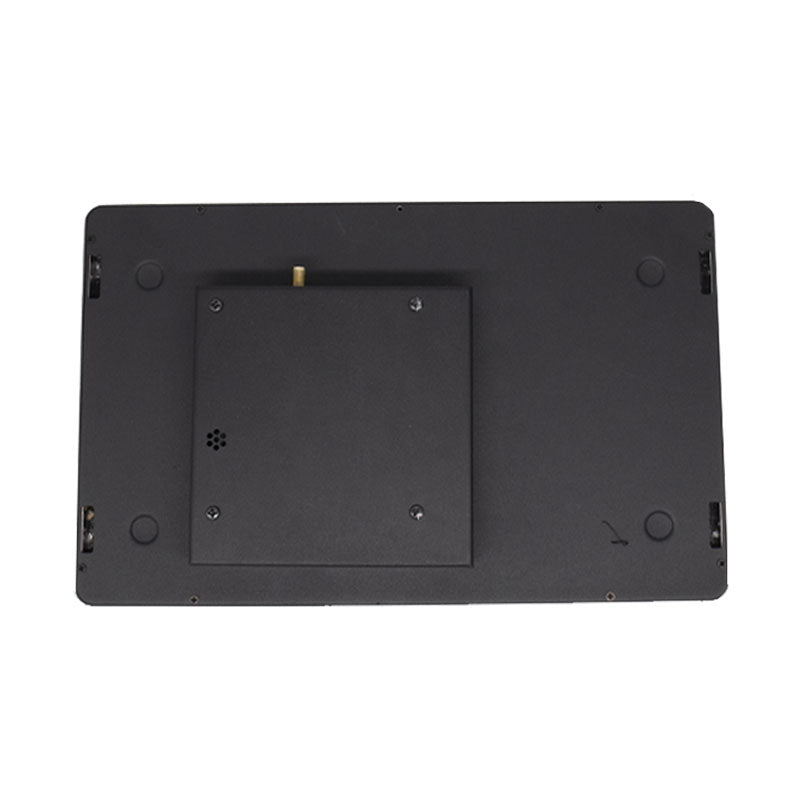

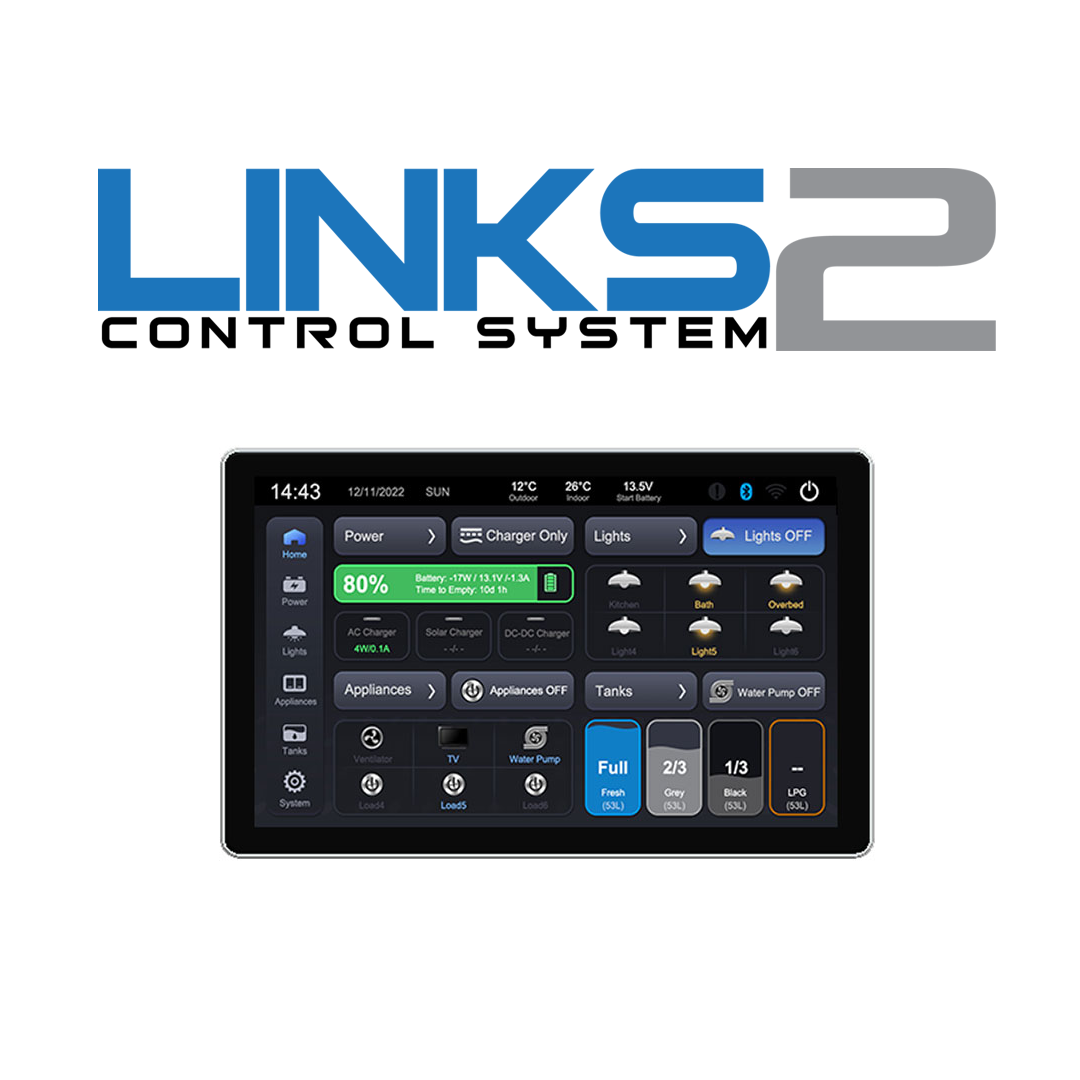

10" Vision Embedded RV Monitor (1024 × 600 High-Resolution Touchscreen)

The Links2 Vision 10 Monitor acts as your RV’s command hub, delivering a clear, responsive, and intuitive interface for managing every onboard electrical function.

Display & Control Features

• 10.1-inch high-resolution touchscreen (1024 × 600) for crisp system visibility
• Embedded operating system designed for durable, long-term RV use
• Links2 APP control for managing systems remotely from your smartphone
• OTG upgrade support for simple firmware updates
• USB connectivity for expanded pairing and device integration
• RS485 and RVC communication interfaces for enhanced compatibility with RV systems
• Built with the quality and innovation expected from LinksWell, Inc.

Whether navigating, monitoring systems, or managing power, the Vision 10 Monitor offers the clarity and reliability essential for life on the road.

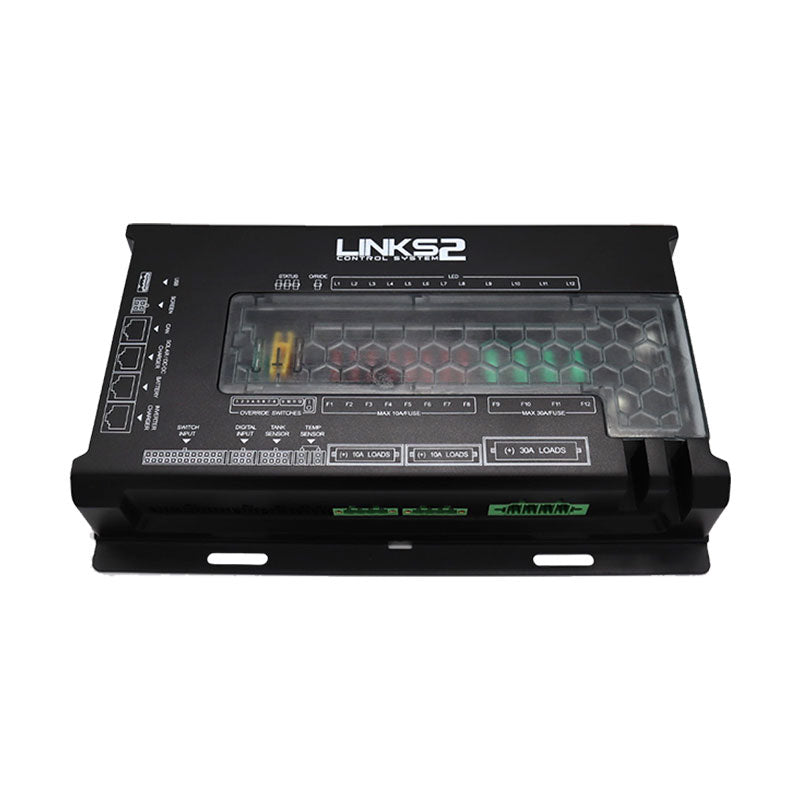

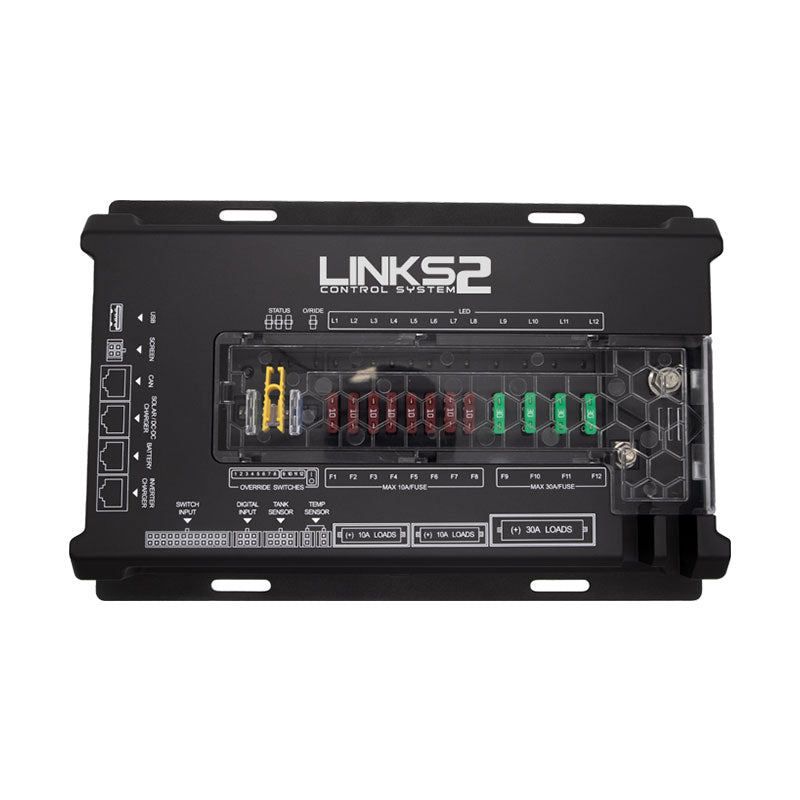

Node 12 – Advanced 12-Channel Power Management Switching Module

The Node 12 module is a high-capacity, precision power management system designed for today’s complex RV and overland electrical setups.

Power Distribution & Output

• Operates at 9–18V with an 80A maximum input current
• 4 × 30A output channels, including two H-Bridge (reverse polarity) channels for awnings, blinds, and motorized accessories
• 8 × 10A PWM dimmable channels for lighting, fans, pumps, and more
• 12 manual override switches for hands-on control
• 12 digital input channels for switches, sensors, and automation triggers

This system simplifies wiring, reduces clutter, and provides professional-level circuit management for appliances, lights, motors, and high-demand gear.

Comprehensive Sensor & Monitoring Support

Keep your RV’s most important systems fully visible and protected.

Integrated Sensor Capabilities

• 2 temperature sensors (internal/external)
• 4 tank sensors (fresh, grey, black, auxiliary)
• 4 fuel sensors
• 4 LPG sensors
• 1 voltage sensor for active monitoring of electrical status

Enjoy real-time insights into fuel levels, water capacity, temperatures, and power health.

Connectivity & Expansion

Built for compatibility with advanced RV electrical systems.

Connection Ports

• Three RJ45 RS485 ports
• One 4-pin RS485 port
• One RJ45 CAN/RV-C port
• USB Type-A port

This versatile communication setup ensures seamless integration with chargers, inverter systems, sensors, and RV-C-based components.

Complete RV Power & System Coordination

Working together, the Vision 10 Monitor and Node 12 Module create a unified control suite for:

• Lighting (with dimming options)
• Pumps, fans, fridges, and major appliances
• Awnings, blinds, and reversible motors
• AC inverter/charger systems
• MPPT solar charging
• DC-to-DC alternator charging
• Battery health and state-of-charge monitoring
• Real-time tank level monitoring (up to 4 tanks)
• Internal and external temperature tracking

Everything you need to manage your RV’s electrical system is centralized and simplified.
